Slurry Pumps: The Workhorses of Abrasive and Corrosive Applications

In industries where moving mixtures of solids and liquids is a primary requirement, the standard centrifugal pump is often a recipe for rapid failure and costly downtime. The solution lies in a specialized class of equipment designed to handle the relentless wear and demanding conditions of solid-fluid mixtures: the slurry pump. Engineered for resilience, power, and efficiency in the face of abrasion and corrosion, slurry pumps are critical assets in mining, mineral processing, dredging, and power generation. This article provides a detailed examination of slurry pump types, operating principles, key design features, material science, and the critical considerations for their selection and operation.

1. Introduction: The Unique Challenge of Pumping Slurry

Pumping a slurry—a mixture of liquid (usually water) and solid particles—presents challenges far beyond those of pumping clear liquids. The presence of solids introduces two primary destructive forces:

• Abrasion: The mechanical wearing away of internal pump components by hard, solid particles sliding or impinging against surfaces.

• Erosion: The accelerated wear caused by the cumulative impact of solid particles carried by the liquid at high velocity.

The severity of these effects is influenced by factors such as:

• Particle Size and Distribution: Fine sands vs. large rocks.

• Particle Shape: Angular, sharp particles are more abrasive than rounded ones.

• Particle Hardness: Compared to the hardness of the pump materials.

• Solids Concentration: The percentage of solids by weight or volume in the mixture.

• Flow Velocity: Higher speeds dramatically increase the rate of erosive wear.

Slurry pumps are specifically designed to manage these factors, sacrificing some hydraulic efficiency for immense durability and reliability.

2. Types of Slurry Pumps

Slurry pumps can be broadly categorized based on their design and application:

a) Centrifugal Slurry Pumps:
The most common type, using a rotating impeller to impart kinetic energy to the slurry.

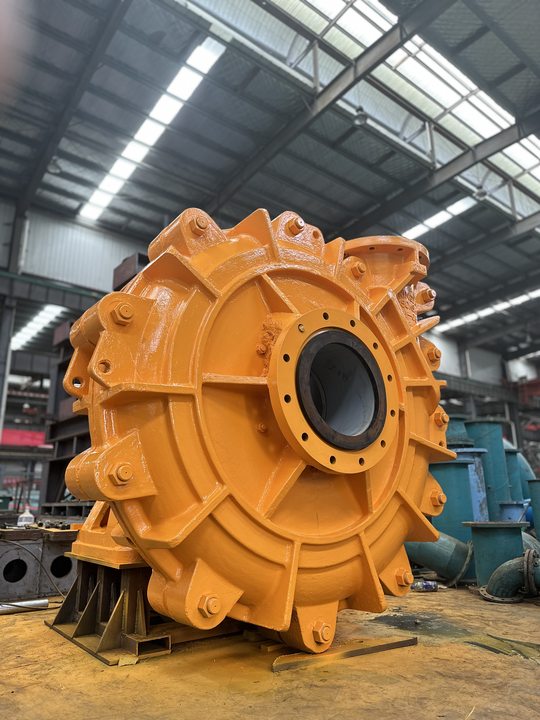

• Horizontal Slurry Pumps: The standard workhorse. The shaft is horizontal, and the pump is typically mounted on a baseplate with a drive motor. They are robust and accessible for maintenance but require a flooded suction or priming system.

• Vertical Slurry Pumps (Cantilever or Tank Pumps): These pumps have no submerged bearings. The motor is located above the sump, and a long shaft connects it to the impeller, which is submerged in the slurry. This design is ideal for sumps and tanks where settling solids could damage submerged bearings found in other vertical pumps.

• Submersible Slurry Pumps: Designed to operate fully submerged in the slurry, often used in dredging, trench dewatering, and pumping from deep pits. They are highly portable but require robust sealing and electrical insulation.

b) Positive Displacement (PD) Slurry Pumps:
Used for pumping highly viscous, non-settling, or very high-concentration slurries where a centrifugal pump would struggle.

• Rotary Lobe Pumps: Gentle on solids, good for shear-sensitive mixtures or large particles.

• Piston Diaphragm Pumps: Excellent for high-pressure applications and handling slurries with extremely high solids content. They use a diaphragm to isolate the slurry from the hydraulic oil and moving parts of the pump, reducing wear.

This article will focus primarily on centrifugal slurry pumps, as they represent the vast majority of applications.

3. Key Design Features and Components

The design of a centrifugal slurry pump is a study in damage mitigation.

• Heavy-Duty Construction: Every component is built to be thicker and stronger than its clear liquid counterpart to withstand wear and absorb the vibrations from pumping uneven mixtures.

• Impeller: Typically has fewer, thicker, and wider vanes (often 3-5) to allow the passage of solids and reduce clogging. It is designed to operate at slower speeds (a lower specific speed) to minimize abrasive wear.

• Volute (Casing): Features a large, semi-volute or concentric casing to reduce velocity and provide ample space for solids to pass through, minimizing wear points.

• Liners: Many slurry pumps are designed with replaceable liners inside the casing. This allows the sacrificial wear parts to be replaced at a fraction of the cost of replacing the entire pump casing. Liners can be symmetrical (for uniform wear) or asymmetrical (to extend life in high-wear areas).

• Sealing System: Perhaps the most critical subsystem. Standard mechanical seals often fail quickly.

  • Expeller Seal: A sealed, oil-filled chamber with a reverse vane impeller that creates a barrier pressure to prevent slurry from entering the gland area. Requires clean water for effective operation.

  • Gland Water (Quench) Seal: Introduces clean, pressurized water into the stuffing box to flush away abrasive particles from the seal faces.

  • External Mechanical Seal: Uses a specially designed seal with hardened faces (e.g., silicon carbide vs. silicon carbide) and a barrier fluid system to keep the seal environment clean.

4. The Science of Materials: Choosing the Right Armor

Material selection is the first line of defense against wear. The choice depends on the slurry's abrasiveness, corrosiveness, and particle size.

• High-Chrome White Iron (27% Chrome): The industry standard for highly abrasive slurries. It is extremely hard (600-700 BHN) and offers excellent abrasion resistance but can be brittle and is susceptible to corrosion from acidic slurries.

• Natural Rubber (Elastomers): Superior to metal in many applications involving fine, sharp abrasives (e.g., sand and gravel). Its elasticity allows it to absorb the energy of impacting particles and flex without fracturing. It is, however, unsuitable for large, sharp rocks or oils/solvents.

• Polyurethane: Offers an excellent balance of high abrasion resistance and toughness. It is often used for liners, impellers, and other components handling moderately abrasive slurries.

• Stainless Steels (e.g., CD4MCu, 316SS): Used primarily when corrosion is a significant concern alongside abrasion. They are softer than high-chrome iron but offer much better chemical resistance.

• Ceramics and Ceramic Composites: Used in ultra-high-wear applications like small, high-pressure pump parts or as wear plates in seals. They offer extreme hardness but are very costly and brittle.

5. Critical Application Areas

• Mining and Mineral Processing: The largest application. Used in every stage, from transporting ore in a hydrotransport pipeline to feeding grinding mills (cyclone feed) and tailings disposal.

• Dredging: Essential for land reclamation, maintaining waterways, and mining sand and gravel from riverbeds and seabeds.

• Coal-Fired Power Plants: Pumping bottom ash and fly ash mixed with water for disposal.

• Steel and Metal Production: Handling scale slurry from rolling mills and other waste products.

• Construction and Tunneling: Dewatering excavations and pumping the spoil (slurry) from tunnel boring machines.

• Industrial Minerals and Aggregate: Processing sand, gravel, cement, and gypsum.

6. Selection and Operational Best Practices

Selecting the right slurry pump is a systems engineering task.

1. Slurry Characterization: A thorough analysis of the slurry properties (SG, particle size, pH, concentration) is the essential first step.

2. Determining Head and Flow: System curves must account for the higher specific gravity and viscous nature of the slurry.

3. Pump Sizing: Slurry pumps are sized to operate at a slower speed than water pumps to reduce wear. The target operating point is often to the right of the Best Efficiency Point (BEP) on the performance curve to avoid recirculation and suction-side wear.

4. Piping Design: Use large-radius bends, avoid sudden contractions/expansions, and ensure pipe velocity is high enough to prevent settling but low enough to minimize erosion.

7. The Future of Slurry Pumping

Innovation continues to focus on extending component life and reducing total cost of ownership.

• Advanced Materials: Development of nano-structured materials, dual-hardness composites, and improved polyurethanes.

• Predictive Maintenance: Integration of IoT sensors to monitor vibration, temperature, and pressure in real-time, allowing for condition-based maintenance before catastrophic failure occurs.

• Computational Fluid Dynamics (CFD): Using advanced simulation to optimize impeller and volute designs for reduced turbulence, better solids handling, and minimized wear.

8. Conclusion

Slurry pumps are a testament to engineering pragmatism. They are not designed for peak hydraulic efficiency but for maximum longevity and reliability in the harshest environments. By understanding the interplay between robust mechanical design, advanced material science, and careful system integration, engineers can select and operate these vital workhorses to ensure the continuous, cost-effective flow of some of the world's most challenging mixtures. Their relentless operation is fundamental to the infrastructure and industries that form the backbone of the global economy.
